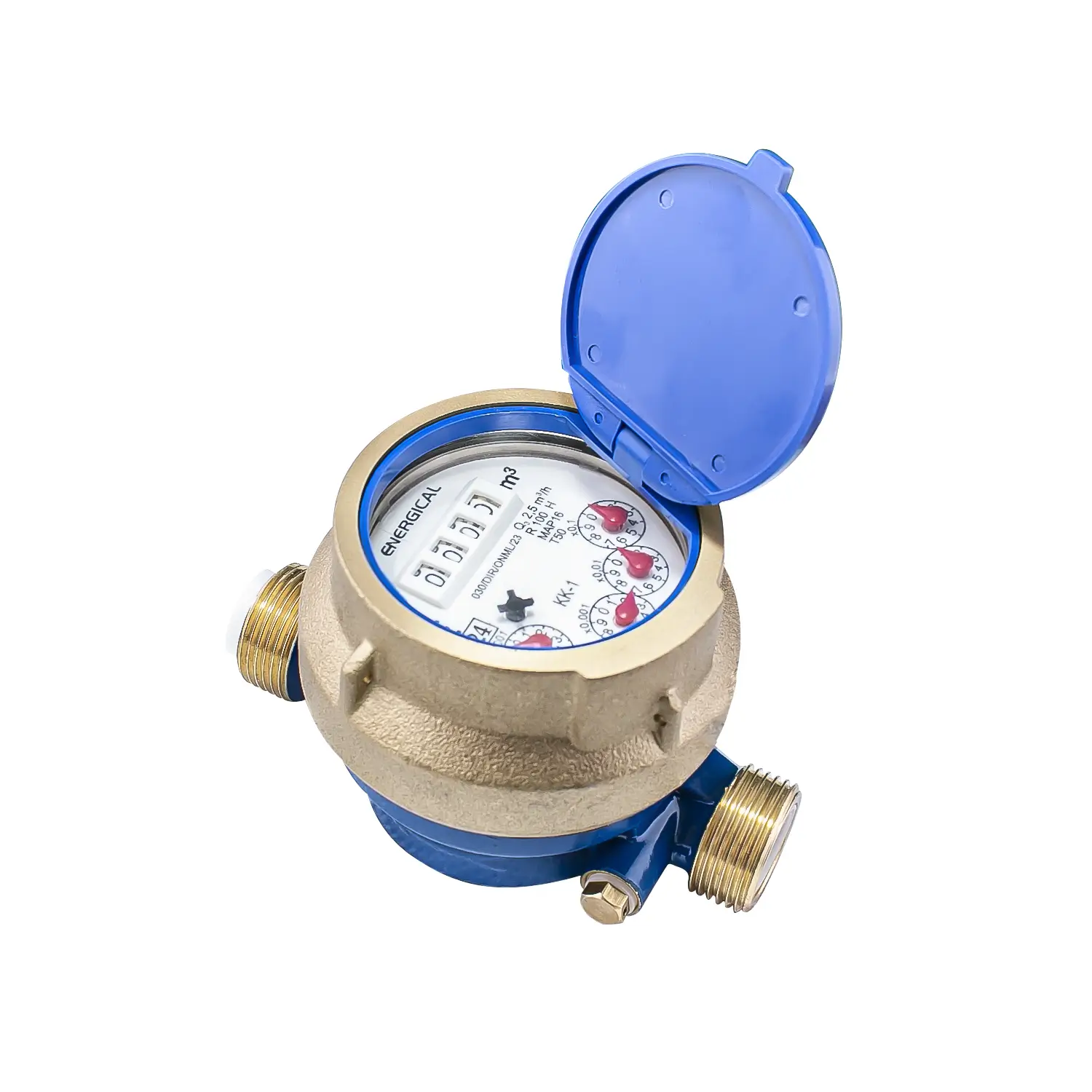

Single jet semi-dry water meter MOD.KK-1

5 000,00 DA

MID certified water meter, in anti-corrosion brass, compatible with drinking water up to 50°C, with optical reading options and 2-year warranty.

En stock

Category: SKU: MOD.KK-1

Description

  • MID certified
  • The single-jet design ensures very high sensitivity
    even at low flow rate
  • Suitable for drinking water
  • Available for optical reading
  • Pulse Output Characteristic and AMR Reading
    available
  • Corrosion-resistant brass body, painted in a
    electrostatic
  • Protection against external magnetic fields
  • 2 years warranty
  • Vacuum mechanism
  • 360° rotating cover
  • Suitable for cold water up to 50°C
  • Almost no maintenance
  • After-sales service and spare parts available.

Informations complémentaires

Poids0,7 كيلوجرام
Dimensions16.5 × 9.5 × 11.2 سنتيميتر
Nominal diameter

15-20 mm

Connection diameter

G 3/4" - G1" B

Maximum working pressure

16 bar

Maximum recording capacity

99999.99 m³

The smallest reading resolution

0.00005 m³/h

Overload flow rate

3.125 m³/h

Permanent flow

2.5 m³/h

Horizontal transition flow

0.025 m³/h

Minimum horizontal flow rate

0.0156 m³/h

Vertical transition flow

0.05 m³/h

Minimum vertical flow rate

0.03125 m³/h
